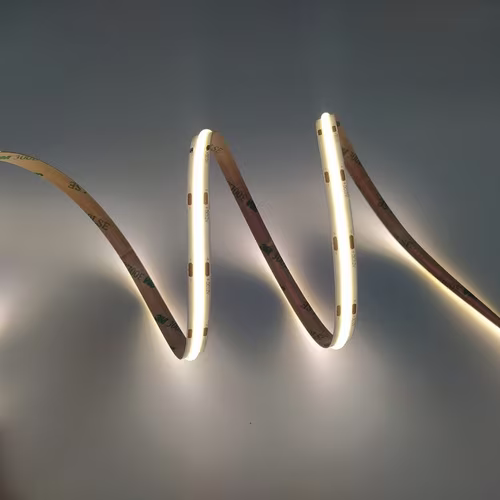

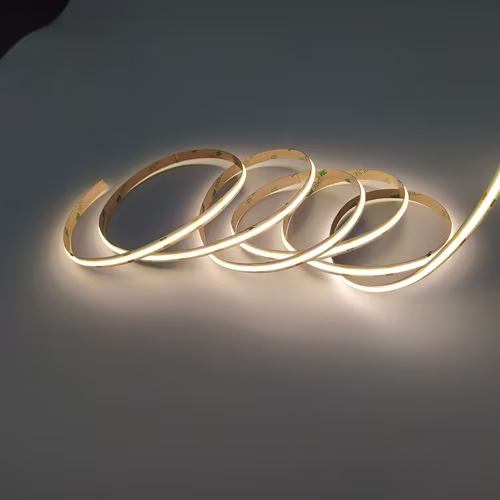

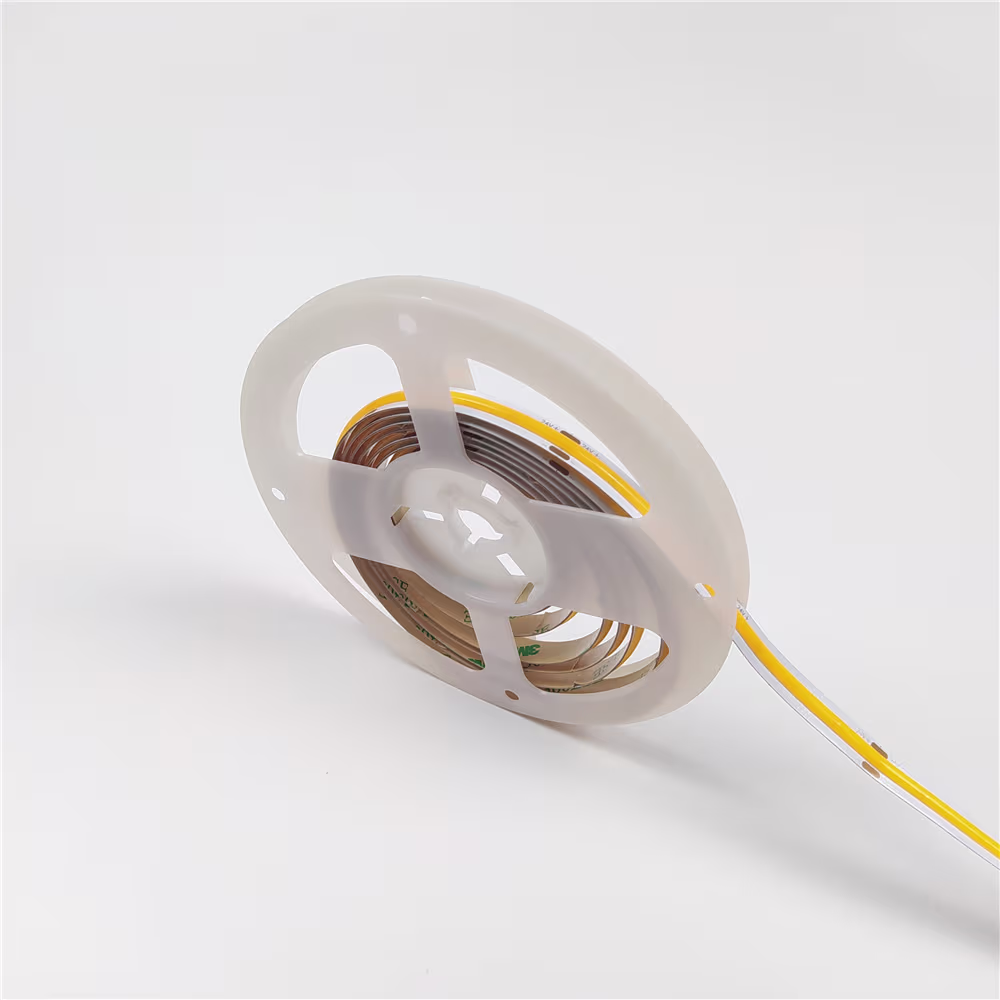

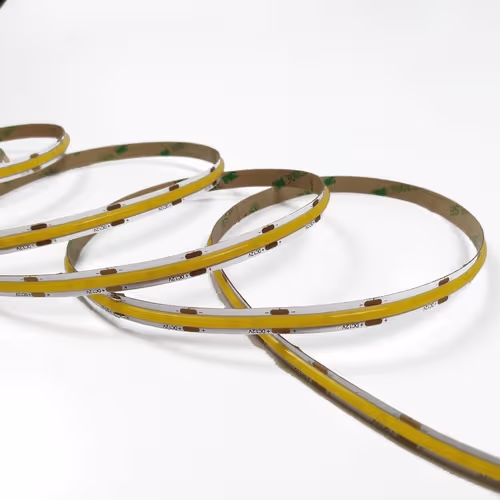

Tunable White COB LED Strip Light
Adjustable White Light from Warm to Cool
A tunable white COB LED strip light combines warm-white and cool-white channels in one flexible strip. When paired with a compatible controller and driver, it lets users shift the color appearance of white light for different settings, including:
- Relaxation spaces
- Task lighting
- Retail presentation
- Hospitality
- Multi-purpose interiors
This CCT adjustable COB strip is available in four configurations. Each one has a defined LED density, strip width, supply voltage, and wiring type. Selected models pair a 2700 K or 3000 K warm-white channel with a 6000 K cool-white channel.
Tunable operation depends on the full system, not the strip alone. The strip, controller, and power supply must be specified together.
Available Configurations
| LED Density | Width | Voltage | Power | CCT Range | Wiring | Cut Length |
|---|---|---|---|---|---|---|
| 600 chips/m | 5 mm | DC 24 V | 14 W/m | 2700/3000–6000 K | 2-wire | 20 mm |
| 512 chips/m | 8 mm | DC 24 V | 16 W/m | 2700/3000–6000 K | 3-wire | 31.25 mm |
| 608 chips/m | 10 mm | DC 12/24 V | 22 W/m | 2700/3000–6000 K | 3-wire | 13.15/26.31 mm |
| 640 chips/m | 10 mm | DC 24 V | 22 W/m | 2700/3000–6000 K | 3-wire | 50 mm |
Benefits
One Strip, Multiple White Lighting Scenes
A single series can support warm, neutral, and cool white applications, making it easier to specify across different project styles. Use it for cozy residential spaces, balanced commercial interiors, or brighter task-focused environments.
CRI 90+ for Accurate Color Rendering
With a color rendering index above 90, surfaces, materials, and skin tones appear more natural and true to life. This is especially valuable in hospitality, retail, residential, and display settings where color quality affects the overall experience.
Three PCB Widths for Better Integration
Available in 5 mm, 8 mm, and 10 mm widths, the strip can fit a wider range of aluminum profiles and installation spaces. This gives designers and buyers more flexibility when matching the product to channel size, light output, and application constraints.
Power Options from 14 W/m to 22 W/m
Choose the output level that fits the project instead of over-specifying. Lower wattage can work well for accent or ambient lighting, while higher wattage options are better suited to installations that need stronger illumination or greater visual impact.
Flexible Cut Intervals for Detailed Layouts
Short cut intervals make it easier to adapt the strip to shelves, cabinets, niches, coves, and other custom runs. This helps reduce waste, improves fit accuracy, and gives installers more freedom when working around project-specific dimensions.
Ready for Advanced Lighting Concepts
When paired with the correct drivers and controls, the strip can support smart-home systems, hospitality lighting schemes, retail environments, and human-centric lighting concepts. That makes it suitable not just for basic illumination, but for more refined lighting design strategies.
Controller Compatibility
Important: The 2-wire and 3-wire versions of this dual white LED strip use different control methods. They are not interchangeable, and neither one can be wired to a controller built for the other.
- Strip circuit: 2-wire or 3-wire, as listed in the configuration table.
- Controller output type: It must match the selected strip circuit.
- Dimming method: It must be supported by both the controller and the overall control system.
- Power-supply capacity: It must be sized to the strip's rated power per meter and the total run length.
Frequently Asked Questions
What color temperature range is available?
Selected models combine a 2700 K or 3000 K warm-white channel with a 6000 K cool-white channel.
Specify your preferred warm-white endpoint when you request a configuration.
Can tunable white COB strip be dimmed?
Yes. It can be adjusted with a compatible controller.
The exact dimming protocol and controller must be confirmed for the selected 2-wire or 3-wire model.
Does the light stay CRI 90 across the entire CCT range?
The quoted white-light series is specified at Ra above 90.
Final photometric data should be confirmed for each channel and for each mixed CCT setting.
Request a Configuration
To specify a 2700K–6000K LED strip for your project, send us the details below. Our team will review your requirements and confirm the correct 2-wire or 3-wire version for your application.
Project Details to Include
6 items- Preferred warm and cool CCT endpoints Tell us the target tunable-white range, such as 2700K to 6000K or 3000K to 6000K.
- Strip width Specify the required PCB width to match your profile, channel, or installation space.
- Voltage Let us know whether your project requires DC 12 V or DC 24 V.
- Control system Share the controller type, dimming method, or platform so we can confirm compatibility.
- Run length Include the total project length and, if possible, the length of each individual run.
- Project quantity Tell us the estimated quantity so we can recommend the right configuration and quotation basis.
